Create a Collector Client

Learn how to create a BloodHound Enterprise collector client.

Purpose

This guide explains how to create a BloodHound Enterprise collector client. It is intended for Administrators who are deploying a collector application for data collection.

Collector clients connect your BloodHound Enterprise tenant to collector applications. They provide the authentication and configuration information that SharpHound Enterprise, AzureHound Enterprise, and OpenHound use to securely upload collected data for processing and analysis.

BloodHound Enterprise supports three types of collector clients:

• SharpHound Enterprise - Collects data from Active Directory environments
• AzureHound Enterprise - Collects data from Entra ID environments
• OpenHound - Collects data from cloud environments supported by OpenHound collectors

Prerequisites

• A BloodHound Enterprise tenant
• Logged in as a user assigned a role authorized to create a collector client

See SharpHound Enterprise System Requirements, AzureHound Enterprise System Requirements, or OpenHound server/container requirements for collector-specific requirements.

Process

This guide covers the required steps to create a collector client in your BloodHound Enterprise tenant.

Optional configuration settings are also explained, but can be skipped during initial setup and configured later if necessary.

SharpHound Enterprise

SharpHound Enterprise collector clients support both API token-based authentication and Integrated Windows Authentication (IWA) via Active Directory Federation Services (ADFS).

When creating a SharpHound Enterprise collector client, you must select the authentication method and provide the required information based on that method. Be sure to save the generated token or configuration information and use it to configure the SharpHound Enterprise collector application.

1. Open the Manage Clients page

   In the left menu, click Administration > Manage Clients.

2. Create the client

   1. On the right side of the page, click Create Client.

   2. Select Create SharpHound Enterprise Client from the dropdown menu.

   3. Complete the required fields:

      Field	Required	Description
      Client Name	Yes	A descriptive name for the collector client (for example, the name of the domain it collects from or system it runs on)
      Collection Schedule	No	Optional configuration options for scheduling data collection jobs
      Advanced Options	No	Optional domain controller targeting By default, SharpHound automatically selects a Domain Controller for LDAP queries. Specifying a target will prevent cross-trust collection from working unless the targeted LDAP server can respond for all desired domains
      Authentication	Yes	Authentication method the client will use: BHE Authentication: Traditional API token-based authentication (default) Integrated Windows Authentication: Windows-based authentication via ADFS
      Issuer ID	Yes (IWA only)	The ADFS well-known endpoint URL, typically: https://adfs.example.com/.well-known/openid-configuration
      Issuer Address Override	No (IWA only)	An optional override for the token issuer address if your ADFS configuration uses a different issuer URL for token validation

      BHE Authentication

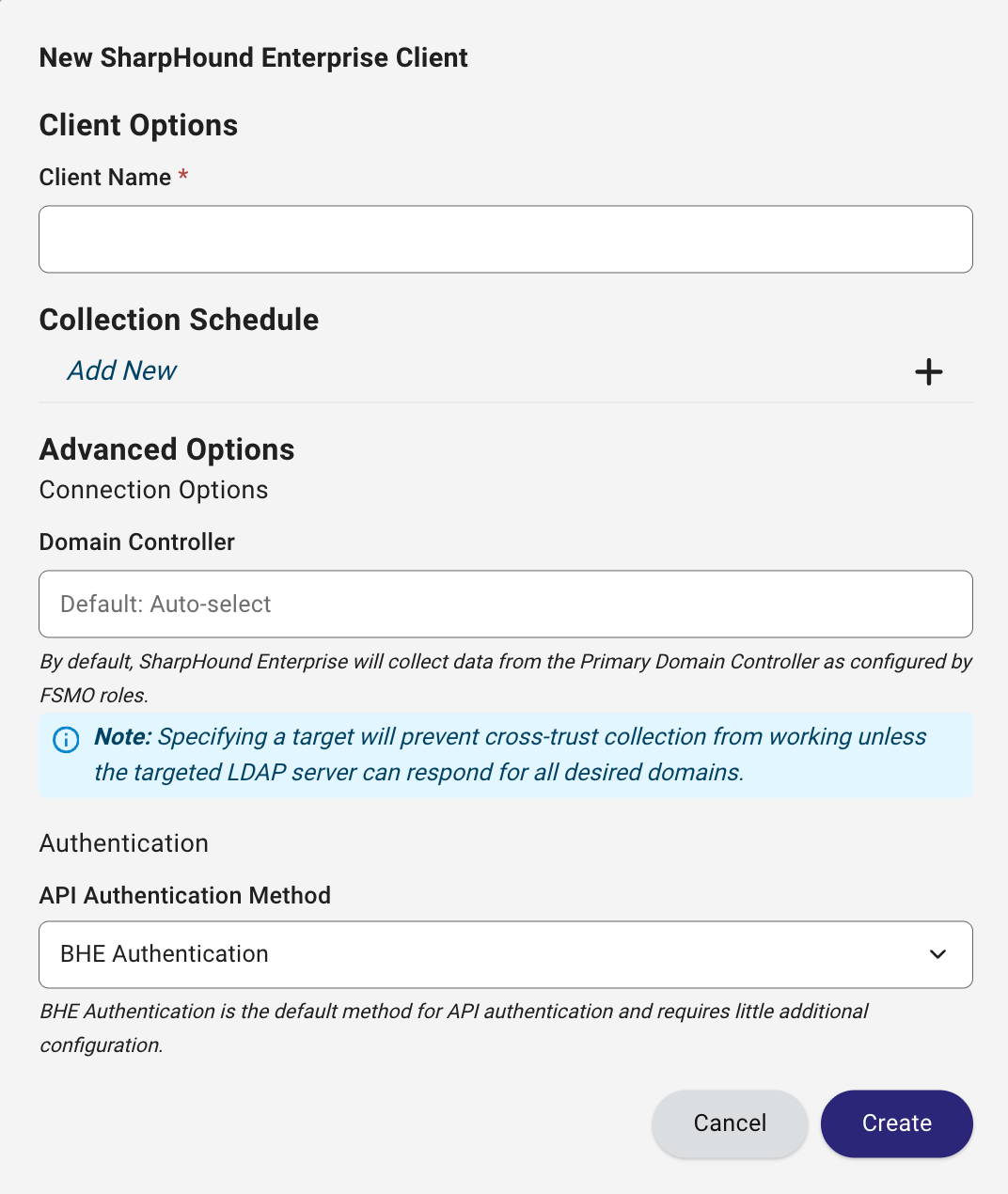

      The following screenshot shows the client creation form when BHE Authentication is selected.



      Integrated Windows Authentication

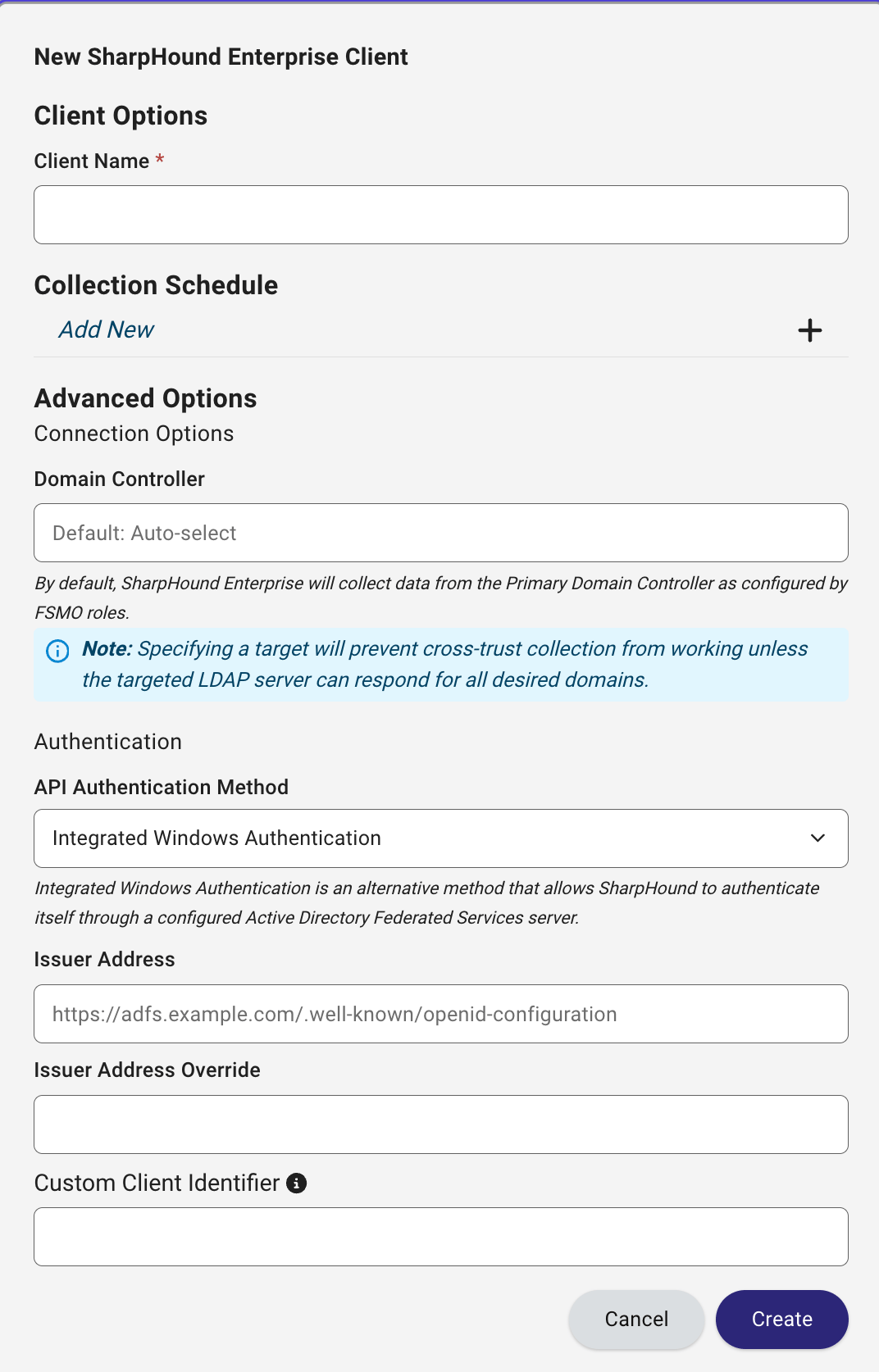

      The following screenshot shows the client creation form when Integrated Windows Authentication is selected. Note the additional required Issuer ID field and optional Issuer Address Override.



   4. Click Create.

3. Save the client token or configuration

   A pop-up window will appear and display the client token (for BHE Authentication) or client ID information (for Integrated Windows Authentication). Follow the instructions in it before clicking Close.

   Switching Authentication Methods

   If you are switching an existing SharpHound Enterprise collector client to a different authentication method, this step replaces the current credentials.

   • Switching to Integrated Windows Authentication invalidates existing API tokens and requires you to update the settings.json file and remove the auth.json file.
   • Switching to BHE Authentication generates a new token and requires you to update the auth.json file and disable IWA in the settings.json file.

   BHE Authentication

   A Client Token Info window will appear with authentication credentials. Copy and save the token information before closing.

   The token information is required to configure the SharpHound Enterprise collector application in the auth.json file.



   Integrated Windows Authentication

   A Client Configuration Info window will appear with the Client ID required to set up ADFS.

   The Client ID and configuration details are required to configure ADFS and to configure the SharpHound Enterprise collector application in the settings.json file.



AzureHound Enterprise

AzureHound collector clients use API token-based authentication. When creating an AzureHound collector client, you must save the generated Token ID and Token before closing the dialog. You use these credentials to configure the AzureHound collector application.

1. Open the Manage Clients page

   In the left menu, click Administration > Manage Clients.

2. Create the client

   1. On the right side of the page, click Create Client.

   2. Select Create AzureHound Client from the dropdown menu.

   3. Complete the required fields:

      Field	Required	Description
      Client Name	Yes	A descriptive name for the collector client (for example, the name of the domain it collects from or system it runs on)
      Collection Schedule	No	Optional configuration options for scheduling data collection jobs



   4. Click Create.

3. Save the client token

   A Client Token Info window appears with authentication credentials. Copy and save the token information before closing the window.

   The token information is required to configure the AzureHound collector application.



OpenHound

OpenHound collector clients use API token-based authentication. When creating an OpenHound collector client, you must save the generated Token ID and Token before closing the dialog. You use these credentials to configure the OpenHound secrets.toml file.

This is a SpecterOps-managed feature. If it is not enabled in your environment, contact your account team for assistance.

1. Open the Manage Clients page

   In the left menu, click Administration > Manage Clients.

2. Create the client

   1. On the right side of the page, click Create Client.

   2. Select Create OpenHound Client from the dropdown menu.

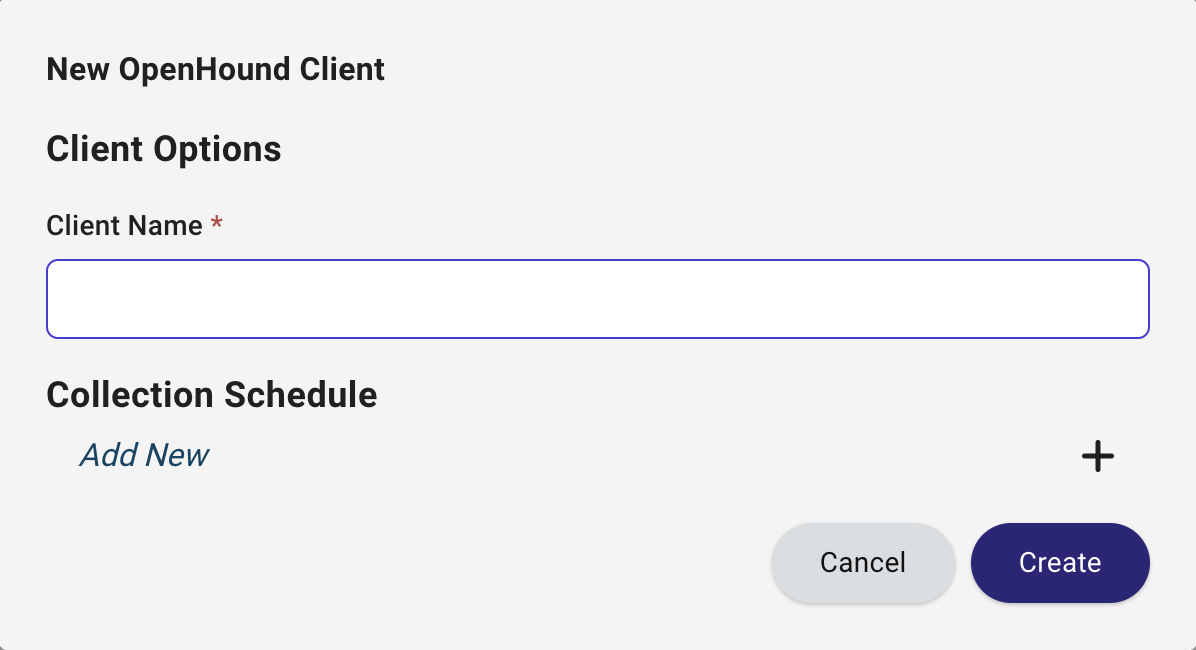

   3. Complete the required fields:

      Field	Required	Description
      Client Name	Yes	A descriptive name for the collector client (for example, the environment it collects from)
      Collection Schedule	No	Optional configuration options for scheduling data collection jobs



   4. Click Create.

3. Save the client token

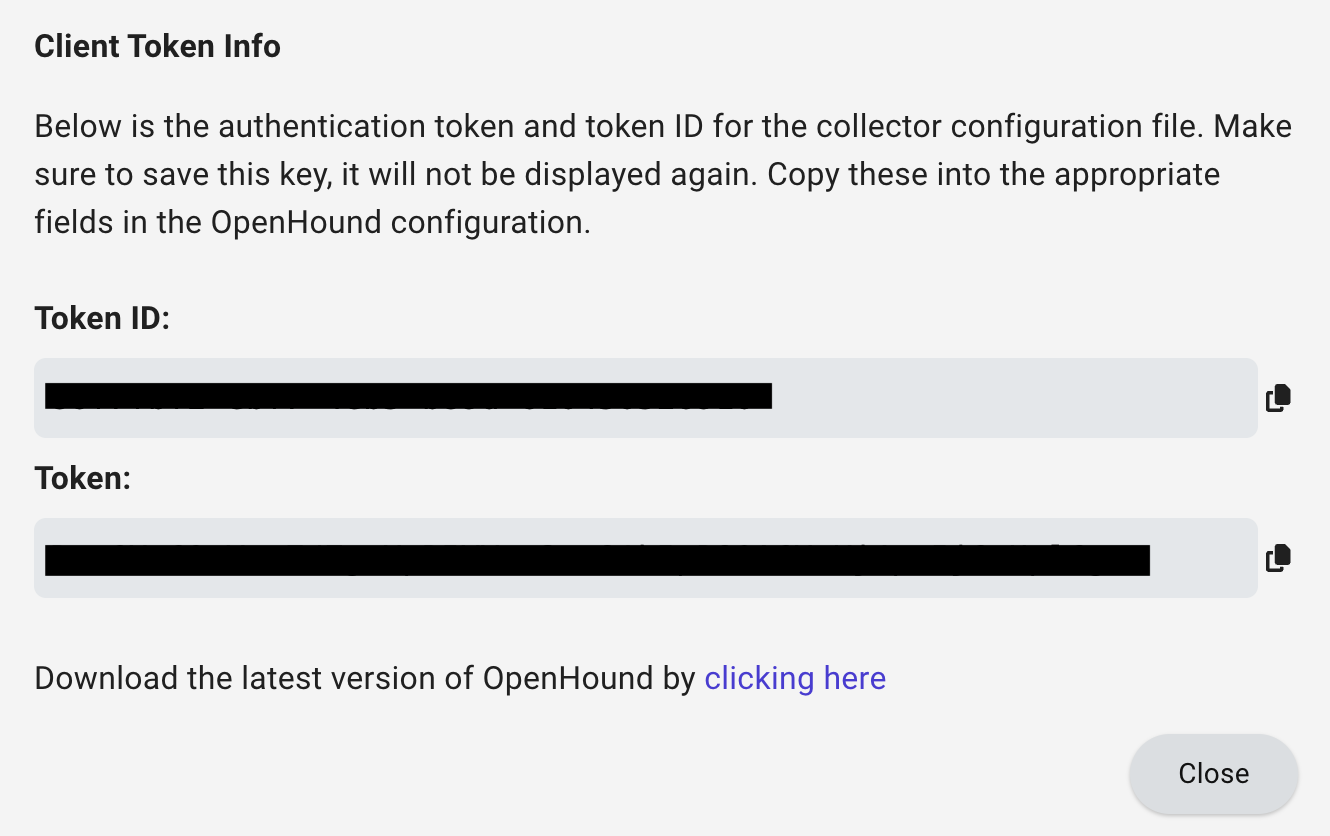

   A Client Token Info window appears with authentication credentials. Copy and save the token information before closing the window.

   The token information is required to configure the OpenHound secrets.toml file.



Outcome

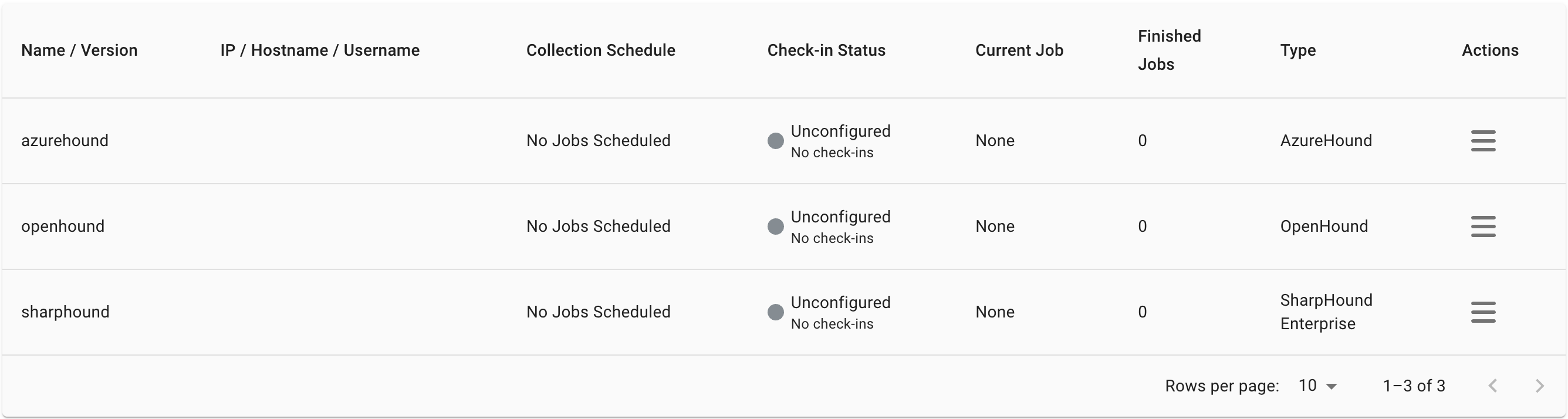

BloodHound Enterprise displays collector clients in the table on the Manage Clients page with a Status of Unconfigured.

Next Steps

• SharpHound Enterprise clients:

  • BHE Authentication: Use the token information to configure the SharpHound Enterprise collector application in the auth.json file.
  • Integrated Windows Authentication: Follow the ADFS configuration guide to set up ADFS, then configure the SharpHound Enterprise collector application in the settings.json file.

• AzureHound Enterprise clients:

  • Use the token information to configure the AzureHound collector application.

• OpenHound clients:

  • Use the Token ID and Token to configure the OpenHound secrets.toml file.
